How to Not Suck at Cornering

This is a rider who sucks at cornering.
This is a rider who sucks at cornering.

Hot on the heels of the The Power of the Quick Turn article is this followup post about what happens after you tip into a corner. Too many riders struggle with cornering, not necessarily because they are afraid to lean, but becasue they do not understand how to properly complete a turn.

Cornering Basics

By now you know that motorcycles must lean to change direction and that leaning is done by countersteering. Read about countersteering HERE.
Once the bike begins to lean, countersteering pressure is reduced and other dynamics take over that cause the motorcycle to arc around the curve, including front end rake and trail geometry, as well as something called camber thrust. Camber thrust is the term that describes how a tapered object (a motorcycle tire leaned over) orbits around its axis when rolling along a surface (the pavement).
In other words, the rounded profile of a motorcycle tire acts like a tapered styrofoam cup when it’s rolled on its side. Give it a push and it rolls in a circle.
Here is how author and  fellow USCRA racer Tony Foale describes camber thrust:
“As the inside edge of the tyre is forced to adopt a smaller radius than the outer edge, then for a given wheel rotational speed, the inner edge would prefer to travel at a smaller road speed, this happens if the wheel is allowed to turn about a vertical axis through the point of the cone. Just as a solid cone on a table if given a push.”
For our purposes, all you really need to understand is that your motorcycle is designed to track around a curve with minimal effort once the bike is in a lean. Front end geometry (caster effect, rake,  trail, etc.) all make this possible. If you want to read more, go to Tony Foale’s website and learn all about it.
If your bike is properly maintained and has relatively new tires with nearly the original profile intact, you should be able to initiate lean and then maintain that lean angle without introducing any significant handlebar inputs. Problems occur when the rider messes this process up. Most bikes will track predictably and with little effort as long as the rider doesn’t interfere with the process or introduce counterproductive inputs.

Variations in Machine Design

Some riders insist that they cannot round a corner without using significant handlebar pressure to keep their machine on the desired path. Instead of being able to relax and let the bike carve the path, they fight the bars all the way around the curve. It is possible that the machine is to blame, but these days this is rarely true.
While I have ridden bikes with really bad cornering dynamics, the vast majority of modern machines offer balanced, neutral handling that requires little-to-no mid-corner intervention. The only reason for handlebar adjustments are because of mid-corner changes in turn radius, camber or surface condition. A smooth constant radius curve, ridden well, requires almost no additional handlebar pressure.
It’s important to note that different types of bikes handle differently. Sportbikes are responsive to steering inputs, while cruisers tend to be slower steering, but more stable. Still, if the rider does all the right things, then the differences in machine does not make that much of a difference. The trick is to have the knowledge and skill to complete a corner proficiently.
Basically, it’s usually much more productive to evaluate the user instead of blaming the machine.

User Error

To repeat…once the necessary lean angle is established, most bikes are happy to track around a corner with little effort. So, why do some riders struggle with this part of the cornering process? The answer lies in a few areas.

  1. Tension at the handlebars. The front of the bike needs to be free to move up, down, and side -to-side in response to both large and small changes in the road surface. Being stiff on the handlebars interferes with this motion and causes the motorcycle to feel reluctant to turn. It also asks the tires to work harder to stay in contact with the surface. Another problem with stiff arms is that you are inhibiting the slight countersteering corrections that may need to occur to deal with changes in camber or other variations in corner surface. Loose arms allow fluid reactions.
  2. Poor body position. Think of your bike as your dance partner who wants you to lead. In the case of the cornering dance, a slight dip of the shoulder to the inside of the curve will encourage smoother cornering. In contrast, a rider who stays upright or leans outside is stepping on the bike’s toes, causing it resist fluid cornering.
  3. Not using the Throttle Correctly. For the motorcycle to track around the corner predictably and smoothly, the suspension must be stable and in the middle of its travel. Smooth, gradual acceleration throughout the curve produces the best results. Be sure to slow enough at the beginning of turns so that you can comfortably roll on the gas all the way to the exit. Unfortunately, a lot of riders fail to use steady throttle in corners. This is a problem, because changes in speed and drive force alter the arcing path the motorcycle takes. Abruptly chopping on or off the throttle upsets this stability and causes the bike to lift and fall in and out of the established angle of lean and introduces forces that result in a wobbly or weaving line around the corner. Note that acceleration typically makes the bike drift wide and deceleration can either cause the bike to drop into the corner more or cause it to stand up, depending on how abruptly the throttle is chopped and how the machine /tire combo responds to this input.
  4. Not Looking through the Turn. You tend to go where you look, so look where you want to go! By keeping your visual attention through the turn and toward the corner exit, your mind is able to better manage the corner. The other advantage is that the landscape slows down when you look ahead. This reduces anxiety and helps complete the concerning process. Looking ahead will not suddenly make you a cornering master, but without habitually looking ahead, you will never become one. Keep your eyes up.
Practicing cornering technique. Look where you want to go!
Practicing cornering technique. Look where you want to go!

Cornering Technique

Okay, so let’s break it down.

  1. Look well ahead.
  2. Countersteer to initiate lean for the corner.
  3. Crack the throttle as soon as the bike is leaned. Use gentle drive at first and then progressively feed in more drive force. Roll on with more authority as lean angle is reduced near the corner exit. Steady drive creates steady cornering.
  4. Relax! If you established the correct angle of lean for the turn, the bike should require only slight adjustments in handlebar pressure. Corners that tighten will require you to press more on the inside bar to lean the bike more, but keep the throttle as steady as possible.
  5. Finish the turn. You’re not done yet. Keep looking toward the corner exit and roll on the throttle a bit more to let the bike drift toward the outside of the curve. This facilitates the “outside-inside-outside” cornering line, which I will discuss in a future post.
  6. Rinse and repeat for the next corner.

There is so much more to learn about the cornering process, but this is a good start. Implement these steps and you’re well on your way to becoming a cornering master.
What tips can you share that help you to corner with more confidence?

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget
Posted on

The Power of the Quick Turn

Ken, turning-in hard and precisely. www.owenstrackdayphotos.com
Ken, turning-in hard and precisely.
www.owenstrackdayphotos.com

Most motorcycle riders initiate lean in a somewhat lazy manner. In most cornering situations and at normal street speeds it is perfectly fine to gradually ease into a corner with light pressure on the handlebars. But, when the pace picks up and the corners become less predictable, a sluggish, indecisive turn-in will cause you to run wide at corner exits. The ability to turn quickly gives you a survival tool for managing misjudged corners while also increasing an overall sense of control and confidence. Booya!

Cornering 101

Before we get into quick turning technique, you must understand the basics of how a motorcycle changes direction. Motorcycles must lean to turn. Leaning is done primarily by introducing countersteering pressure on the handlebar: press forward/down on the handlebar on the side in which you want to turn.
Not sure you understand countersteering? Read This Article NOW. FYI, you can quicken steering by pushing on the inside handlebar while also pulling on the opposite bar.

How Quicker Turns Help

Turning the motorcycle within a shorter distance and period of time gets the bike to change direction early. The quicker the bike is leaned, the earlier the direction change is completed, which affords you a greater margin of error to handle a misjudged turn radius or a slightly overspeed entry. Look at the diagram and you’ll also see that a quicker turn-in means you are not leaned over as long.
Another benefit of a quick turn is that it allows the bike to reach maximum necessary lean angle before or at the turn apex (the innermost part of the corner), which means that you can get on the gas sooner for both greater corner stability (bikes like being under drive when cornering) and greater exit speed (for you performance riders): Tip-in and then crack the throttle.

A quicker turn allows early direction change and less risk of an on-throttle highside.
A quicker turn allows early direction change and less risk time at full lean angle.

A delayed apex requires a delayed, quick turn-in.
A delayed apex requires a delayed, quick turn-in.

Quick Turns and Cornering Lines

The quick turn technique can be used for most, but not all corners. Some corners are laid out so that a gentle, sweeping entry is best. But, most other corners benefit from a quick turn, especially turns we call “exit” turns that require a slower entry and an early drive out of the corner.
A quick turn is also useful as a way to achieve a delayed apex cornering line. Delaying turn-in by a half-second or so keeps you outside a bit longer at the turn entry for a wider angle of view and points the motorcycle toward the turn exit, rather than toward the outside edge of the lane. Novice riders often dive for the inside of a corner as they react to anxiety about not being able to make the turn. This can easily result in an early apex and a blown exit. Ouch!
Instead, wait for it, wait for it…okay, turn, NOW.

Quick Turning and Traction

As you might imagine, giving the handlebar a good shove introduces an abrupt force to the front tire. That’s why you want to limit using the quick turning technique when traction is limited, such as on wet or contaminated pavement. A quick turn uses more traction at the beginning of the turn, but uses less at the apex and exit. Even though more traction is used when turning quickly, good tires in dry conditions have more than enough grip to handle the extra force.
To minimize the risk of tucking the front tire, you must get most of your braking done and start easing off the brakes before you introduce forceful handlebar inputs. However, it is beneficial to maintain some front brake force as you countersteer, which compresses the front suspension and loads the front tire for more rapid turning response. Ideally, you would release the brakes a split-moment after you press on the handlebars.
I’m talking about releasing the brakes almost immediately after initiating lean. If you want to maintain braking pressure longer (trailbraking), then you’re better off not turning in quickly. To manage traction while trailbraking your turn-in must be gradual, because you’re combining both turning forces and brake forces.

Timing & Intensity

A well-timed quick turn should result in a single handlebar input that establishes necessary lean angle and allows immediate throttle application (very gradual at first).
Turning in too hard and/or too early could result in the motorcycle hitting the inside of the curve. To prevent this, you will need to delay turn-in from where you would begin to turn for a slow turn-in. To fine-tune how rapidly the bike turns in, you can also reduce how hard you press on the handlebars. The harder you press, the more rapidly the bike will fall into the lean.

Practice the quick turn technique in a parking lot. And then apply it on your next ride.
Practice the quick turn technique in a parking lot. And then apply it on your next ride.

NOW is the Time!

I don’t care if you ride a GSXR on the racetrack or a Harley on the street, you must master the quick turn technique NOW. Being able to use immediate, authoritative handlebar pressure gives you a MUCH better chance of surviving a too fast corner entry. Learning the quick turning technique will allow you to get the bike turned early and efficiently and minimize the chance that you will panic and grab the brakes or run wide into the oncoming lane or off the pavement. Don’t delay! This just might happen on your very next ride!
Learning to turn quickly isn’t difficult, but it does require excellent countersteering skills and precise timing. Turning quicker also requires more forceful handlebar pressure and the trust that the tires will stick under the stress of more forceful handlebar inputs. Practice is what will convince your mind and muscles of the power of the quick turn. Do it!

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget
Posted on

Sometimes "it" Happens

Ed McGrath with his daughters Chelsea and Brittany.
Ed McGrath with his daughters Chelsea and Brittany.

I just got home from attending a memorial service for two lovely people killed by a heroin addict who apparently nodded off and veered into the oncoming lane and struck their motorcycle. This is a tragedy that is made worse by the fact that the two people were father and daughter.
My brother’s deceased friend Ed loved sharing his passion for riding with his daughters…something I have done for many years with Jeannine. The unimaginable happened when something completely out of their control occurred and their lives ended in a flash.
Read the news story.
Read Ed’s obituary.
Read Britanny’s obituaries

Avoidable?

Ed was doing nothing to jeopardize his and his daughter’s safety except the fact that they were on a motorcycle. It was 3:30 on a sunny midweek afternoon with good visibility and little risk of drunk or stoned drivers (unlike midnight on a Saturday night). Yet, Ed and Brittany were at the receiving end of a one-in-a-million chance that a stoner would cross the centerline just as they were in the vicinity. Why it happened simply cannot be explained.
Some would say that putting you and a loved on one a motorcycle is jeopardizing your and their safety. And they would have a good argument. I’ve known too many people who have lost their life while riding and there is nothing telling me that that trend will end anytime soon.

The Takeaway

In reality, there is not a lot I can say about the situation that killed my friend and his daughter. It sounds like it happened instantaneously, so that parking lot practice to improve his braking or swerving skills wouldn’t have likely helped.
So, what does this all mean? To me, it is yet another sobering reminder that riding a motorcycle comes with the real risk of death, or worse. I know we all “know” this as fact, yet I’m not sure we really “know” what it means until it happens to us. So, we keep riding, as we should. Just remind yourself from time to time just how vulnerable you are and to not take your safety for granted…it is not guaranteed.
What we can take away from tragedies like this is a renewed diligence to be the best riders we can be. Not only for ourselves, but for our loved ones. The pain and sorrow I saw at the memorial service today is evidence of just how deeply we are missed.
Sometimes, as is the case of Ed and Brittany there is truly nothing we can do to prevent a crash. So, we must decide…do we stop riding? Or do we ride on, knowing the odds are mostly in our favor? You choose.

There is Hope

Thankfully, the vast majority of incidents are avoidable with excellent mental and physical skills.
Do yourself and the people who care about you a big favor and learn all you can about motorcycle safety and refine your control skills and ability to perform evasive maneuvers so that you at least have a chance of avoiding tragedy.
Share your thoughts below.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy recommended products from Twisted Throttle & Amazon



Posted on

Track Day Bike Prep-Triumph Street Triple R

The Patient:

I recently sold my trusty track-only 2005 Kawasaki ZX6R for a more upright track /street bike. I thought I would buy a new Yamaha FZ-09, but I talked with Dave Searle from Motorcycle Consumer News who told me that the FZ needed a lot of work to make it track worthy, so I opted for a slightly used 2012 Triumph Street Triple R. I rode it at a track day the day I picked it up and it performed very well in stock form. But, as a track day junkie and instructor, I needed more precise handling and I need to make sure a tipover will not keep me from continuing with my day.
Besides doing the track day stuff, I also Accessorized the Street Triple with some street-oriented stuff. You might want to check that out later.

 First, Some Video

Below is a video showing a couple of laps of me and the Striple at Loudon. I’m in the red vest. The Street Triple fun starts at 7:10.

At Barber

At Thompson, CT

Bolt on Bike Protection

You are not required to have frame sliders or any other type of bike protection at most track day events. But, it is smart to protect your motorcycle in the event that you go down. I ride on the racetrack as one of my jobs, so I do over 2,000 track miles per season. Even though My crash rate is very low, I have been known to make a mistake or two. An investment in bike protection (as well as rider protection) can mean the difference between ending your day early or getting back out on the track to finish your day on two wheels. I also carry some spare levers and foot pegs, just in case.
Here are some images of the work I’ve been doing to my 2012 Triumph Street Triple R. It is serving as my track bike and as an occasional street bike. I focused first on bolting on some engine, frame and exhaust protection. I work for Twisted Throttle, so it made the most sense that I use products that they import and sell. The stuff from R&G Racing and SW-MOTECH are top shelf, IMO and I would consider using their products even if I didn’t get the employee discount. Click the links to see all of the Twisted Throttle products for the 2012 Street Triple  and 2008-2011 Street Triple.
A few notes (see photos below):

  • Wired oil filler and dipstick caps: I leave more wire at the ends so I can simply unwind the tail end, pull it through the hole and then reuse the wire after an oil change.
  • R&G Racing swingarm spool and protector, in combination with the Woodcraft spool and protector: I have both of these swingarm protectors because I have seen too many swingarms get damaged when the threaded swingarm spools break off in a crash. I decided to add the axle spools/protectors to try and give a second point of contact to hopefully prevent the threaded boss in the swingarm from getting damaged. Another reason to have both spools s because you can’t use the rearward R&G spools to support your bike with a race stand for removing the wheel, because they must be removed to take out the axle. So you need the other spools as well.
Peter Kates from Computrack Boston works his magic.
Peter Kates from Computrack Boston works his magic.

Suspension

Penske 8389 remote shock
Penske 8983 remote shock

The suspension was upgraded over the winter to include Penske fork valving, a .95 fork spring swap and a Penske 8983 with a remote reservoir. The stock suspension is very good, but at the level I need to ride when instructing for Tony’s Track Days, I need a bit more adjustability than the stockers can provide. The remote reservoir was a bit difficult to locate, making the extra cost of a piggyback worth considering. But, it works great.
The highly regarded skills of Peter Kates from Computrack Boston were employed. PK has been around the Loudon paddock for years and is the go-to guy for suspension and chassis tweaks.After some compression and rebound damping tweaks and a change to a 750 pound spring, the shock is now setup for serious lap times. What is interesting is that the suspension now doesn’t work as well at slower speeds. It’s a bit busy UNTIL you turn up the speed and then it all makes sense (like most race setup suspension).
Forks recessed into the clamps adds sorely needed trail. And the Scott's damper is a nice thing to have for cresting hills at speed.
Forks recessed into the clamps adds sorely needed trail. And the Scott’s damper is a nice thing to have for cresting hills at speed.

One other thing I had Peter do was measure the chassis to get the rake and trail to be set at the optimum numbers for fast riding. This means increasing trail on the Triumph 675s. Many Daytona riders opt to replace their triple trees with one with less offset. this gives them the trail needed for mid-corner stability and cornering feedback. The Street Triple is closer than the Daytona in regards to trail, so instead of springing for the $800.00 triples, Peter slid the fork tubes down inside the top clams as far as possible. It looks weird, but it did increase mid-corner feel at speed without slowing turn-in.

Tires

Pirelli Supercorsa on 2012 Triumph Street Triple R after 2 sessions at NHMS (Loudon) runing in the advanced group.
Pirelli Supercorsa on 2012 Triumph Street Triple R after 2 sessions at NHMS (Loudon) running in the advanced group.

People have a lot of questions about tires. I have done track day laps on all kinds of tires, including basic OEM rubber, Sport touring tires, sporty street tires, and DOT race tires. Believe it or not, most all are capable of keeping you on two wheels when ridden at a novice, intermediate, or a slower advanced group pace. I have used Michelin Power One race tires for the last few track day seasons and loved them, but this year I am switching to Pirellis. The reason is that I always liked the feel of Pirelli tires and it doesn’t hurt that TTD is supported by Motorcycle Tires and Gear (MTAG), who also supplies Pirelli tires to the Loudon Roadracing Series.
My Street Triple comes stock with Pirelli Rosso Corsa, which is a proven track day favorite with many of the TTD staff, including my daughter, Jeannine. I rode the first 3 session at Loudon on the Rossos and had no sense that the tires were limiting me in any way. I changed over to Pirelli Supercorsa race tires after lunch so I could compare the differences and so would have fresh rubber for the track day that Tony and I will be attending at Barber Motorsports Park in November.  I got along with the Supercorsas just fine, thank you. I immediately braked deeper, accelerated stronger and cornered harder to a point where I approached my best times I typically do on my ZX6R. I was impressed.
Does the average track day rider need race tires? No. Most modern sport-oriented tires that are relatively new will do just fine. It comes down to whether your level of riding is good enough for you to actually use race ribber. Most people have a long way to go before the answer to this question is yes. Run what ya brung, mister.

Daytona Rearsets

2007 Daytona rearsets mounted on my 2012 Street Triple R

The stock Street Triple rearsets are very comfortable for street riding, but are too far forward and are a little too low for aggressive track riding. I dragged my toe slider before I was dragging my knee, which is no good, as I use my knee dragging to measure my lean angle. And without that tool, I am not able to monitor lean angle with the same level of confidence I like. The stock footpegs are also too far forward for moving from side to side without pulling on the handlebars. Footpegs that are further rearward allows me to use my legs to support my torso when flopping from left to right, especially when doing so uphill, like what happens at turn 7 and turn 8 at NHMS.
The 2007 Daytona rearsets bolt on easily with no issues whatsoever. I could even use the stock shift rod. The rear brake light switch needs a bit of adjustment, but that’s really easy to do.The Daytona pegs could be even further back for my taste, but it’s a big improvement at 1″ further back and 1/2″ higher compared to the stocker STR rearsets. I also think the Daytona rearsets look great.

Levers

I installed some shorty levers, which are more adjustable than the stock ones and are less likely to break in a crash. The short levers also accommodate two finger use and they look cool. I’ve used ASV levers before and really like them, but a lot of racers use the cheap knock-offs from China, so I’m giving them a try. I installed the levers and they seem fine. Perhaps they aren’t as nice as the expensive ones. but they are good looking and work great. I have to get used to the shorties after always having standard long versions.

Tank Protectors

Like a lot of sport bikes these days, the tank on the Street Triple sticks out on either side, enough to cause serious damage in a crash. The latest R6 tanks are known to puncture where the tank sticks out. I opted to mount the R&G Racing tank sliders on the Triple. They are glued on using Aquarium sealant. I asked R&G whether this sealant will harm paint and they say that it will not. They look a little to Squidly for my tastes, but they will do the job if I were to crash.

R&G Tail Tidy keeps the turn signals out of the way and save a ton of weight.
R&G Tail Tidy keeps the turn signals out of the way and save a ton of weight.

R&G Tail Tidy Fender Eliminator

The R&G Tail Tidy allows my bike to be ready for both track or street. The fender eliminator save a lot of weight and keeps the turn signals tucked in in case of a fall.
Click the link below to view the Twisted Throttle product page for the Tail Tidy.

Tiger 1050 Throttle tube and grip

I just installed a Tiger 1050 throttle tube, which has a larger diameter cylinder that the cables run on. This means that the distance (and time) it takes to reach full throttle is reduced.  Racers install quick throttle tubes as a matter of course so they can get to full throttle in an instant. Motion Pro makes a throttle kit that includes several cams to suit the rider’s preference. The 1050 tube is cheap and is a stock item that is an intermediate upgrade without going the full race route.
The installation of the throttle tube was easy. However, I read about the throttle housing c=screws being easy to strip, so I grabbed my impact driver and with a few whacks, loosened the screws. Another slight complication was that the throttle wouldn’t snap back with the larger diameter throttle tube. After some investigation, I discovered that the throttle cables needed more slack… piece of cake, since the “pull” adjuster was about 6 inches down the cable from the throttle grip. Now it’s perfect.
I took it for a short ride and I love the feel of the throttle. It seems more responsive and shifting is even smoother. Two thumbs up on this cheap modification. ($17.00 shipped from Bike Bandit)

This is where the gear shift sensor is located. The wire goes to the unit that is behind the plastic countershaft sprocket cover.
This is where the gear shift sensor is located. The wire goes to the unit that is behind the plastic countershaft sprocket cover.

Gear Position Sensor Failure

The old gear shift sensor.
The old gear shift sensor.

It seems that the Triumph 675s are notorious for having bad gear position sensors. The symptoms are a Check Engine Light (CEL) and any manner of numbers appearing in the gear indicator area of the speedo/tach instrument cluster. I bought the Tuneboy ECU reader and after many attempts to get the software to work (thanks Paul) I managed to confirm that the CEL was the result of the gear shift sensor going bad.
Some people have had good luck cleaning the old one, which worked for a while on my bike. But, in the end, the CEL kept coming on. What’s the big deal? you ask. Well, the bike ran fine, but the Tuneboy data shows that different fuel mapping occurs with the different gears. That means without an accurate indication of which gear you are in, the ECU can’t trigger the correct map.
The sensor is located behind the plastic countershaft sprocket cover with the connecting wire underneath the tank. You have to remove the gear shift rod. Hint: The small c-clips that hold the shaft onto the pivot balls poke into a small hole on the side of the shaft’s ball ends. Prop up the tank using the rod that is stored under the seat to get to the wires.
The newer version kit has a 8 inch jumper harness that plugs two of its leads into the Throttle Position Sensor located on the right side of the injector bodies.
The newer version kit has a 8 inch jumper harness that plugs two of its leads into the Throttle Position Sensor located on the right side of the injector bodies.

The new “kit” that was indicated for my bike included the sensor with a wire plug that does not fit the old plug from the bike’s harness. The kit includes a 8 inch jumper harness that plugs into the old harness, the new sensor at one end and the other ends plug into the Throttle Position Sensor located on the right side of the throttle bodies. The wire is long enough to cross underneath the fuel tank. Some say it may provide a power boost. We’ll see. At least the ECU will know what gear the bike is in.
After changing the sensor, the CEL went out after three startups. I am taking the bike to the track again in a week and I’ll see if any power advantages occur because of the new harness and sensor. Stay tuned.

General Track Day Bike Preparation

Oil filter and drain plug wired to keep fluids where they belong.
Oil filter and drain plug wired to keep fluids where they belong.

Preparing a motorcycle for a track day doesn’t have to be a big deal. Some people are under the impression that they have to drain fluids, wire bolts and tape every light in sight. While some track day organizations do require race-level preparation, many do not. Tony’s Track Days (TTD) requires very little prep. (See the video
below for requirements). Many people don’t have access to a truck or trailer and ride to the track on their street bikes. They remove their mirrors and licnse plate (if necessary), disconnect or cover the brake lights, lower their tire pressures (30,f, 30 r is a good starting place) and they are ready to go through tech inspection. Staffers are there to help with any issues. Motorcycle prep should not be a reason for not attending a track day!
One thing that seems to stump a lot of riders is how to secure a spin on oil filter. It’s as simple as getting a 4″ hose clamp from your auto parts or hardware store, slip it around the filter and rotate it so it hits a solid part of the engine or frame to prevent the filter from spinning off. If necessary, wire the clamp to a solid object (see photo).

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Product Gallery. Buy from here and support RITZ

Twisted_Affiliate-widget-R-G-Exhaust Twisted_Affiliate-widgetR-G-Tank-SLider


Check out these posts:

Stay Informed: Subscribe NOW!
Trianing-Tours_LandingBe a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget



Posted on

Get your Shift Together

Smooth Shifting is a hallmark of riding proficiency.
Smooth Shifting is a hallmark of riding proficiency.

Shifting is a significant part of the riding experience. It is satisfying to smoothly click through the gears with a barely detectable interruption in forward drive as your hands and foot perform seamlessly with perfect timing and minimal effort.
Shifting gears is a skill that, once learned, becomes part of a rider’s muscle memory and is then pretty much forgotten about.
But, there is much more to shifting than simply selecting the next higher or lower gear. A truly proficient rider understands the benefits of perfectly timed shifts and knows how to use the clutch as a tool for refining control.
New riders often struggle to coordinate the clutch and shift lever, but most get past the difficulties fairly quickly. MSF Basic RideCourse students often fail because of more critical issues, such as braking or cornering problems.
Still, poor shifting skill can be a problem. Lousy coordination and timing leads to abrupt gear transitions and lurching that can compromise control and traction. Not only does this cause control problems, but it also really pisses off passengers. To become proficient, you must pay attention to refining shifting skill.

Quick Upshifting

Quick shifting allows the revs to drop only slightly between the time you squeeze the clutch, shift and then release the clutch. These rapid upshifts provide seamless power delivery.
To upshift quickly, roll off the throttle only slightly and squeeze the lever only enough to disengage the clutch while shifting the transmission into the higher gear with a quick flick. Preload the shift lever for speedy lever action. As soon as the transmission is in the higher gear, immediately release the clutch and roll on the throttle. Done correctly, the quick shift technique should take about one second and forward drive should remain steady.

Precise timing of the clutch and throttle allows smooth clutchless upshifts and throttle-blipping downshifts.
Precise timing of the clutch and throttle allows smooth clutchless upshifts and throttle-blipping downshifts.

Clutchless Upshifts

For the most rapid upshifts (not counting electronic shifters) you can eliminate the clutch from the upshifting process altogether. Yes, you can upshift without using the clutch! A well-timed, rapid throttle closing, in combination with a ready left foot can upshift most modern transmissions with buttery smoothness that maintains forward drive with virtually no chassis pitch.
Clutchless upshifting is done by closing the throttle as you instantaneously shift to the next higher gear and then immediately open the throttle. Each step is done simultaneously, with the entire technique taking less than a second. Done correctly, the machine will experience no added wear and tear. Try it.

Shifting Down

This is what can happen if you miss a shift and then downshift instead of upshift.
This is what can happen if you release the clutch too quickly after a downshift.

Good downshifting is arguably more important than upshifting for maintaining control, because poor timing and abrupt clutch release can cause excessive engine braking that may lead to a dangerous rear tire skid. Read this post warning what can happen if you select a gear that is too low.
The trick is to eeeeaaaaase out the clutch after you downshift to allow the engine to “catch up” to the road speed.
Just be sure to time your downshifts. Clicking into the next lowest gear too early, before the bike has slowed can result in a skid. To prevent this, reduce speed before downshifting.
Manufacturers understand that miscued downshifts are a hazard and install slipper clutches on many high performance motorcycles to reduce the danger of locking the rear wheel during a high rpm downshift.

Blipping the Throttle

Those of us who don’t have slipper clutches just need to learn to ease the clutch out gradually…or blip the throttle. Throttle blipping helps you to match the engine RPM with the road speed during the downshift.
I already wrote a whole blog post on throttle blipping. Please read it so I don’t have to repeat myself.
What tricks or techniques do you use to become a proficient shifter?

MRW-cover
Buy Ken’s new book, “Motorcycling the Right Way”.

Read about strategies and techniques that increase safety, confidence and enjoyment.

Click Here for details.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy recommended products from Twisted Throttle & Amazon



Posted on

Guest Writer: If in doubt, UPshift

Chuck Boucher ripping around turn 9 at NHMS.
Chuck Boucher ripping around turn 9 at NHMS.

Chuck Boucher is the latest RITZ guest blog contributor. Chuck is an expert level roadracer with the Loudon Roadracing Series and is an instructor for Tony’s Track Days.
You can read Chuck’s biography here.
Chuck recently had a racing mishap that landed him in the hospital with a fractured pelvis and a few other less serious, yet painful injuries. Chuck knows exactly what he did wrong and wanted to share his cautionary tale with you to hopefully prevent you from experiencing the same agony.  Let’s see what Chuck has to say.

If in doubt, UPshift!

by Chuck Boucher
As I sit here, recovering from a recent racing incident, I reflect on the reason I’m in need of crutches and pain killers. My little mishap occurred on the first lap of the first practice session during a Loudon Road Race Series (LRRS) event at New Hampshire Motor Speedway.
The lap was typical of any other I had run during the past six years as an LRRS roadracer. Unfortunately, this time around, I found a false neutral and the absence of any engine braking.

This is what can happen if you miss a shift and then downshift instead of upshift.
This is what can happen if you miss a shift and then downshift instead of upshift.

A False What?

In case you don’t know, a false neutral is when the motorcycle fails to completely engage a gear. This results in zero engine braking and an unexpected sense of coasting that actually feels more like acceleration, just when you want to be slowing down. Yikes!
Downshifting at this time is usually a bad idea, because you risk momentarily skidding the rear tire if the gear is too low for the bike’s speed when the gears finally do engage. Instead, the best way to handle this situation is to shift UP into the next higher gear so you don’t end up in too low a gear for the speed you are traveling. A too low gear can easily cause the rear tire to lose traction. Do this while leaned and you have a bad result.

Mistakes Made, Lessons Learned.
Mistakes Made, Lessons Learned.

My Downfall

Unfortunately, with the turn one apex fast approaching, my mind said click the shifter up (my race bike is GP shift, which means clicking the lever upward causes a downshift). I knew my mistake the moment I let the clutch lever out. The rear wheel skipped a few times then locked, sliding the rear end of the bike sideways. Then the tires regained grip and catapulted me over the high-side.
Understand that there are times on the street or track when you have fractions of a second to make decisions that could cost you dearly. These decisions can go well, or not, based on previous experience. My false neutral took me completely by surprise and I acted wrong. You can be sure it won’t happen again.
If you’ve never experienced a missed downshift and a false neutral, count yourself lucky. However, if it does happen to you, take my advise and always shift UP! You may not have the engine braking you desire and you’ll be in too high of a gear, but at least you won’t likely high side.

More Good Advise

Stuff can happen to anyone, at any time. Whether it is a car at an intersection, a missed downshift or a too fast corner entry. How you react and what you do in that brief moment can be the difference between a close call and taking a ride in an ambulance strapped to a back board. My message to you is to always keep your skills sharp to avoid a worst-case scenario.
Consider taking the Motorcycle Safety Foundation Experienced Rider Course (BRC 2) and participating in a track day to acquire advanced braking and cornering skills.

Thanks for sharing what you learned, Chuck. Heal up fast!
Editor: Someone asked about whether a slipper clutch would have saved the day. I do believe a slipper would have re-engaged the power gradually enough to perhaps prevent the severe loss of grip. While a slipper clutch can do wonders, the actual clutch design and how sensitive it’s adjusted will affect whether or not the slipper re-engages the power slowly enough. This will still cause the rear to slide, just not nearly as much.
Do you have a similar experience to share? Make a comment below.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy recommended products from Twisted Throttle & Amazon
Posted on

How to Not Suck at Braking

If this is what happens when you brake hard, you need practice.
If this is what happens when you brake hard, you need practice.

This is the first installment of the “How Not to Suck” Series. I wanted to start the series with braking, because people seem to really suck at this important skill.

The Scenario:

You are riding along “minding your own business” when a car suddenly pulls out in front of you. You grab a handful of front brake and stomp on the rear brake. What results is a fishtailing motorcycle followed by a cacophony of squealing rubber and grinding metal and plastic on asphalt.
The typical response from the rider after such a mishap is:

  1. “There was nothing I could do! He came out of no where”
  2. “I slammed on the brakes and laid ‘er down”
Ruh, Roh. This rider crashed because he did not use good stratrgies for predicting hazards and then couldn't brake properly when he needed to.
This rider crashed because he did not predict that a car might turn left in front of him and then couldn’t brake properly when he needed to.

Where You Went Wrong

You applied too much brake pressure for the conditions. This caused you to skid out of control. The best riders know how much brake force they can apply without skidding. They do this by recognizing the quality of the road surface and determine the quantity of available traction. They still stop quickly, but they do so without skidding and losing control.

Prevention is Key

The trick to minimizing the likelihood of a crash caused by poor braking skills is to not put yourself in an emergency position in the first place. I know crap happens and some things just cannot be avoided. But, guess what? MOST close calls and crashes can be avoided. How do you do this, you ask?
First, you must have really strong strategies for anticipating hazards before they become a close call or crash. This takes developing a sixth sense about your surroundings and having excellent situational awareness.
Next is to recognize when traction is limited and know how much brake pressure you can introduce without skidding. To do this, you must develop a keen traction sense that tells you how much brake (or turning) force is available. This comes from experience and practice (Like riding in dirt, for instance).
Now is the best time to mention ABS. None of my current bikes have ABS, but I’m a big fan. Why not have a backup system in place to kick in if you don’t evaluate the conditions perfectly? Seems like a good idea to me.
Even with great strategies and skills things still happen even to the best riders. So what if you do panic and  overbrake?

OK, I Screwed Up, Now What?

The Motorcycle Safety Foundation (MSF) has taught students for years to “keep a rear skid locked” to prevent a possible high side crash.This can occur if you release the rear brake while the rear tire is out of line with the front tire. When the rear tire regains grip, it can snap immediately in line with the front tire. If this happens abruptly, you could get launched into the weeds over the high side of the bike. Ouch!
I just learned that the newest MSF curriculum mentions being able to release the rear brake “if the rear wheel is nearly in line with the front”. I’m glad they include this in the Student Workbook because it is more practical advice, but requires good judgment and timing (or luck).

Squeeze the front brake progressively, but fully while at the same time easing off the rear brake to prevent a rear tire skid.
Squeeze the front brake progressively, but fully while at the same time easing off the rear brake to prevent a rear tire skid.

How to Stop Correctly

The basics of braking are to use both brakes (for street riders) and to do so with the correct amount of pressure for your immediate needs. Track day riders and road racers usually do not use the rear brake, because of the extreme transfer of load onto the front tire that renders the rear brake almost useless. But, if you’re a street rider, use both brakes. Yes, modulating the rear brake can be tricky, but learn to do it. That way you can benefit from all the brake power available.
When you are faced with a hazard and must brake hard, you are at the greatest risk of doing it wrong. Not only will you be using maximum brake force and all available traction (which can be difficult to modulate), but your muscles will be supercharged by panic, which can easily lead to overbraking.
The key to emergency braking while staying in control is to manage available traction and to anticipate the change in available traction between front and rear tires as load shifts forward when brake force is introduced…Squeeeeeze the front brake while Easing off the rear brake. This takes practice.

Practice, dammit! You'll thank me someday for insisting that you do.
Practice, dammit! You’ll thank me someday for insisting that you do.

How to Stop Sucking at Stopping

You will be remiss if you do not practice maximum braking techniques. Too many riders I’ve worked with have never braked hard enough to experience threshold braking. When asked to brake as hard as they can most recoil with anxiety, afraid to apply the brakes that hard (even if they have the safety of ABS).
But, what do you think you must do to avoid a deer or a Buick’s bumper? Training yourself to use your bike’s brakes fully BEFORE you need to will increase your chances of surviving.
Practice maximum emergency braking on your next ride…before you need to use it in the heat of battle. Practice in a clean parking lot (with ATGATT, please).
Brake practice is an important and responsible thing to do to make sure you’re ready for the next time you need it (which could be today).  I always start the day during Personal Instruction with parking lot maneuvers that include both normal and threshold emergency braking practice. I have several braking drills described in the Riding in the Zone Book and demonstrated in the DVD.
What are your experiences with braking? Any scary moments you’d like to share? Comment below.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy recommended products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget
Posted on

Product Review: MRA X-creen Add-on Spoiler Blade

Featured-Product-Photo-MRAI get a lot of questions about which products I use, so I’m adding a new blog category where I can share some product reviews. Many of the products I am writing about are ones I actually use and can recommend. If I have reservations about a product, rest assured I will tell you.

First, a Word About Twisted Throttle

Many of the products are available through Twisted Throttle. This is because I have a special relationship with the company, so I get an nice discount (No, I can’t get YOU that discount, yeesh). Understand that I don’t use crappy products, even if they are discounted! Thankfully Twisted Throttle sells some of the best, highest quality motorcycle products around.
Master-pProduct_Widget-HorizontalIf you choose to buy any product from Twisted (not just ones I feature), please buy from their site through the links in this post, from the ads in the sidebar, or by clicking on the product images at the bottom of this post. That way you help support Riding in the Zone. You don’t have to do anything more; just click and shop as you normally would. Much Appreciated!

Product Review: MRA X-creen Add-on Spoiler Blade

The MRA X-creen (yep, it’s spelled without an “s”) is a spoiler blade that either clamps or bolts onto your existing windscreen. I bought the MRA for additional wind protection on my Sprint RS street bike, but soon figured out that it works great clamped to the flyscreen of my Triumph Street Triple track bike. I can adjust it upward for colder days and when my neck gets tired from windblast. I can also move it downward for maximum airflow on warm days.

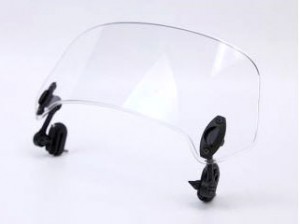

MRA X-creen TOUR clamp-on
MRA X-creen TOUR clamp-on

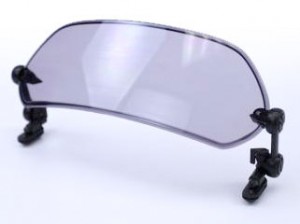

MRA X-creen SPORT clamp-on
MRA X-creen SPORT clamp-on

The X-creen comes in two sizes, the smaller Sport version and the taller and wider Tour version. The larger Tour model comes specifically with either clamps or bolt-on hardware. Both models are available in clear or smoke. I have the clear version for my Sprint RS and smoke for my Street Triple.

Installing the X-creen

Option 1: Clamp-on, Clamp-off

Assembling the adjustment mechanism to the spoiler blade is pretty easy. You have to first decide whether you want to use the clamps (this is what I use) or use the bolt-on hardware for a permanent installation. The clamp-on version allows you to move the blade from one bike to another. The clamp hardware is really nicely made and utilizes rubber inserts that will not scratch your windscreen (or paint in the case of my Street Triple’s flyscreen).
Assembling the clamps involves placing the pivoting locking mechanism in the ends of the adjustment arms. This takes only a few minutes.
No, the clamp-on version will not go flying off as soon as you hit highway speeds. As a matter of fact, I’ve done 130 mph (on the racetrack of course) and the blade stayed securely in place. See the video below for proof!
General Installation Instructions can be found HERE.

Option 2: Drill Baby, Drill!

If you choose to bolt the blade on permanently, you’ve got more work to do. Specifically, you’ll have to drill two holes in your existing windscreen. The kit comes with a template for locating the holes. If this makes you queasy, Twisted Throttle sells MRA replacement windscreens with the X-creen already bolted on for specific bikes. Even though replacement screens cost a bit more, some people may feel better having MRA do the drilling and installing at the factory.
Installation instructions for drilling can be found HERE.
If you decide later to use the X-creen on a different bike, but don’t want to drill any holes, you can convert a bolt-on screen to a clamp on screen using a special conversion hardware kit. Note that this is for the TOUR version only. The SPORT version comes with both clamp-on and bolt-on hardware.
Four videos on how to install the X-creen can be found on the Twisted Throttle Product Page.

How Does it Look?

The X-creen is unobtrusive, and dare I say, I think it’s even attractive, especially on the Sprint RS where it fits nicely on the stock screen and isn’t out of place on this sport touring bike.
On the Street Triple, it is a bit less graceful looking, but I think it looks as good or even better than many other windscreen options, including the Triumph factory flyscreen visor kit, which requires you to drill the flyscreen (Yuck), almost completely covers it over (why did I buy a flyscreen to begin with?), and doesn’t add very much wind protection. Oh, and it’s kinda spendy.
But, judge for yourself. Here are some photos of the MRA X-creen on a Ducati Multistrada, my Triumph Sprint RS, and my Triumph Street Triple R.

The X-creen mounted on a 2007 Ducati Multistrada. Model: Jeannine Condon
The X-creen mounted on a 2007 Ducati Multistrada.

The X-creen mounted on my Sprint RS
The X-creen mounted on my 2000 Sprint RS

The X-creen mounted on my Street Triple R track bike.
The X-creen mounted on my Street Triple R track bike.

Adjusting the X-creen

Adjusting the screen when it’s new requires some rough handling…sort of like when you replace face shields on Arai helmets: you feel like you’re going to break the ratcheting mechanism, but it’s okay…that’s just the way it is. Thankfully, after a bit of use, the mechanism loosens up and I can now adjust the screens while sitting on the bike (not while moving of course). All you do is turn the teardrop-shaped locks until they are pointed sideways and grab both sides of the screen and rotate into the position you want. The adjustability is almost infinite.

The X-creen in the upper position. (it can go higher, still)
The X-creen in the upper position.

The X-creen in the lower position.
The X-creen in the lower position.

The X-creen clamp-on mounts.
The X-creen clamp-on mounts.

A view from the saddle.
The X-creen from the saddle.

How Does It Work?

Once positioned, rotate the locks and the screen won’t move. Trust me! I’ve been using the X-creen on the racetrack all season and it doesn’t move even at 130mph! See the X-creen in action in the video below.

As far as wind noise goes, The Sport version seems to be perfect for the Sprint. I do notice a bit more wind noise with the blade set vertically, but simply tipping it back a bit makes any wind noise go away. I’ve never felt any buffeting, at all. The fact is that the X-creen is so easy to adjust and has almost infinite positions that if I ever had excessive noise or buffeting, I’d simply try a slightly different position. I love having that versatility.


So, there you have it. The MRA Sport X-creen is a great accessory that offers a tone of versatility to you touring, sport touring, adventure or sport bike. It retails for $114.99 from Twisted Throttle.
Let me know what your opinion is of this product. And ask me any questions you have about the X-creen by posting in the comment section below. I’ll reply so everyone can benefit.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Click on the SHOP NOW Image to go to the Twisted Throttle Product and buy. Buy from here and support Riding in the Zone. Master-pProduct_Widget-HorizontalCheck out the other Recommended Products from Twisted Throttle and Amazon

Some other products you may be interested in:

Twisted_Affiliate-widget-R-G-Exhaust
Twisted_Affiliate-widgetR-G-Tank-SLider
Twisted_Affiliate-Interphone-widget
Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Posted on

10 Reasons Why Street Riders Should Ride in the Dirt

A fun way to become a better rider.
A fun way to become a better rider.

You’ve probably heard people say that dirt riding can help improve a road rider’s skill, but can it really make you a safer and more competent street rider? The answer is yes.

1. Improved Traction Sense

One thing you'll learn is traction management.
One thing you’ll learn is traction management.

Managing traction is one of the highest priorities for any motorcycle rider, whether on street or off-road. Dirt riding provides ample opportunities to learn about traction management as the tires hunt for grip on unpredictable surfaces.
Having your motorcycle move around beneath you is disconcerting for street riders who are new to this sensation, but it helps you learn about traction management, including which inputs help and which hurt traction.
And this experience translates to street riding. Imagine yourself suddenly feeling your tires sliding as you roll over a wet surface or a bit of sand in a corner. Imagine your bike feeling like it is falling out from underneath you. Most street riders will panic, flinch and tense on the handlebars. This often makes matters worse.
With dirt riding experience, you are more likely to recover from a relatively minor slip instead of panicking and gripping the bars in fear. Previous experience can allow you to stay composed and relaxed so your inputs remain fluid, allowing the tires a chance to regain grip.

2. Clutch and Throttle Control

You're going to get dirty.
You’re going to get dirty.

Throttle, clutch and brake control become very important when your tires are skipping over tree roots and wet rocks or through deep sand and gravel. But, you may not realize just how important fine clutch and throttle control affects a street rider’s confidence.
By perfectly timing clutch release and throttle application, you manage lean angle, traction and direction control. This is especially noticeable when downshifting as you enter a slow turn. If you downshift as you begin to tip into a turn, you must feed the clutch out smoothly to avoid abrupt driveline lash that can disrupt traction and direction control.

3. Slow Speed Skills

Off-road riding typically includes a lot of slow speed maneuvering, which means that your sense of balance at slow speeds will increase greatly. Maneuvering slowly over rough or loose terrain requires steady, smooth power delivery. This often means slipping the clutch to control the power and prevent instability and unwanted direction changes. Yet another reason why masterful use of the clutch is so important for precise control of forward drive, both on and off road.

You learn slow speed maneuvers and balance.
You learn slow speed maneuvers and balance.

4. Balance and Body Position

Because a lot of off-road riding is done at slow speeds over uneven surfaces, maintaining balance is a constant issue. The technique for maneuvering any motorcycle at slow speeds is to counterweight so that the motorcycle leans independently of your upper body. Counterweighting keeps the center of gravity over the tire contact area to maintain grip when traction is low.
Riding a lightweight dirt bike means that much more of the steering is done with the footpegs and body. By positioning your body forward, rearward and side to side, you influence direction control.
You’ll need to learn to ride while standing on the footpegs to allow your legs to act as shock absorbers. This can be tiring at first, until you learn the proper “neutral” position that keeps your bodyweight over the balance point of the bike, usually over the front of the fuel tank, knees slightly bent and elbows out.
On the street, you use many of these techniques as you cross speed bumps, railroad tracks or when ascending or descending steep hills at slow speeds.

5. Throttle and Brake Steering

Another important thing to learn when dirt riding is how to use the throttle and rear brake to change direction by breaking the rear tire loose under acceleration or when braking. It’s scary at first, but once you learn these techniques, your confidence will grow quickly.
On the street, you will have a better sense of how the throttle can help “finish” a turn or how deceleration and brake force can alter your cornering line. Motorcycle dynamics are similar enough between lightweight, off-road bikes and heavy street bikes for this skill to transfer.

6. Improved Brake Control

The front brake offers the most braking power whether riding on or off road, however the rear brake becomes more important when riding in the dirt. When traction is low, the amount of brake force is minimized and load transfer that pitches the bike forward is reduced, which means that the rear of the bike remains more planted for more effective rear brake power.
Another reason to favor the rear brake is to avoid a front tire skid, which must be avoided if you want to remain on two wheels. Loose surfaces are unpredictable, so it’s best to apply more rear brake pressure and modulate the front brake to avoid a skid.
On the street, you learn that there are times when you favor the rear brake a bit more. Riding with a passenger and descending a gravel road are two instances that come to mind.

7. Improved Visual Skills

Off-road riding requires keen vision. One of the keys to a successful off-road outing is the ability to identify the best line through a rocky or sandy trail or fire road so that you find the best available traction. A common problem that new riders have is their inability to keep their eyes well ahead, scanning for the ideal line.
This translates directly to street riding. Nervous riders look down, which leads to higher perceived speeds, and more panic as hazards seem to appear “out of nowhere”. Eyes Up!

Fitness is a must.
Fitness is a must.

8. Better Fitness

Riding on the street can be tiring and can make you sore. But, that doesn’t mean you’re getting into shape. If you want to increase muscle tone and strength, get yourself off-road. The act of balancing a motorcycle over rough terrain is one of the best workouts you’ll experience. Bring a hydration system…you’ll need it.

9. Learn to Fall Down

You won’t likely become a texting teenager’s hood ornament when riding off-road, but there is still significant risk.
Even though crashes are usually less serious, the frequency of tip overs tends to be higher when off-road riding. Typical injuries usually consist of bumps, bruises and perhaps a torn ligament or broken bone if you’re unlucky. Because of these challenges, you should not ride alone without the help of someone to come to the rescue if necessary.
Learning to fall is not usually something I emphasize. Instead, I prefer to teach people how NOT to fall. But, there is something beneficial about being familiar with hitting the deck that can potentially help you if you were to crash on the street, such as trying to relax (yeah, right) or keeping arms tucked in if you tumble. Think of sports players who learn to fall without injury; that’s the theory.

10. Gain a New Respect for Riding Gear

Whether riding on the street or off-road, it’s important to reduce the likelihood of injury and this means wearing protection. No sane person I know would hit the trails without full protection. I’ve seen too many riders fall down and get a rock in the ribs or a stick in the chest to not wear full gear. Not to mention bruised ankles and nasty rash. And that is falling at under 20 mph. You know what happens if you were to hit pavement at 40 mph with inadequate clothing…not pretty. ATGATT, people.

There's nothing like being in nature while learning to be a better rider at the same time.
There’s nothing like being in nature while learning to be a better rider at the same time.

Get Dirty, Skillfully

With good skills, falling can be minimized. But for many, tipovers are a reality when riding off-road, which means you must manage the risks. Don’t take your safety for granted. Learn to ride well! Prepare your mind with an attitude toward reducing risk and protect your body with proper riding gear.
There is a lot more to learn about off road riding. Understand that just because you can ride a street bike does not mean that you can swing a leg over a dual-purpose bike and safely hit the trails. But, it is well worth the effort.
What are your experiences with how off-road riding helps your street riding?

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy recommended products from Twisted Throttle & Amazon



Posted on

The Problem with Rider Training

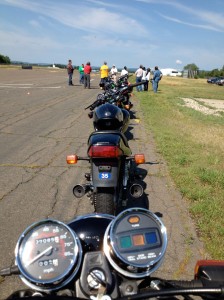

The MSF BRC is good at getting people on bikes. But, is that enough?
The MSF BRC is good at getting people on bikes. But, is that enough?

I recently wrote a blog post asking whether rider training is effective or not. In that post, I talk about the limits of basic rider training and discuss reasons why current training programs aren’t able to reduce fatalities.
In this post, I’ll talk about the problems with current MSF curriculum and how it can inadvertently give false confidence to new riders.

Case Study

This past weekend, I taught a Motorcycle Safety Foundation Basic RiderCourse (BRC). Within the group of 10,  two students in particular were of concern. One person could barely achieve enough speed for stability, which is not unusual for the first few exercises, but this went on for the entire weekend. The other student of concern was an older man who struggled with basic coordination that hindered his ability to use the brakes and throttle and to shift without virtually pulverizing the transmission into dust. He also did not improve as expected.
None of this is terribly unusual early in the curriculum. After all, the course is designed for absolute newbies.  As time goes on, most riders improve, but some do not. Unless a student is either posing a danger or is hindering the progress of the other students, the coaches are able to let them continue.
What is also not terribly unusual is for really weak riders to actually “pass” the course by wobbling through the final evaluation, performing just good enough to be within a minimum standard. In the case of these two students my fellow coach and I never imagined that either one would meet the standards of the evaluation, but they both did. What does that say about the course and the evaluation in particular?

The Basic Course is just that...Basic.
The Basic Course is just that…Basic.

Just the Beginning, No Really!

Overall, I think the MSF Basic RiderCourse does a good job at introducing people to motorcycling. The problem is that by issuing a completion card (that often leads to a motorcycle license endorsement), the students are at risk of thinking they have been given the blessing of certified instructors to go forth and ride like the wind. Hang on, there Bucco.

If you read the objectives of the MSF curriculum you’ll see a statement exclaiming that the Basic course is just the beginning and that it is important for students to practice on their own motorcycle after completion of the course. As long as Rider Coaches convey this information with conviction and the students actually listen to their Coaches, then perhaps the students will perceive their abilities as what they are: BASIC. Unless this concept is driven home, then the Basic Course will likely be the beginning and end of many riders’ training.

Most new riders need much more parking lot practice, preferably on a small bike.
Most new riders need much more parking lot practice, preferably on a small bike.

Next Steps

Telling new riders that they must practice in a parking lot is all fine and well. But, is it enough? The two students I encountered last weekend need more than seat time. They need professional help. Private lessons would do each of them a world of good. But, will they do it? And is it even available?

And what about the average rider who passes the course with a decent score? They need more than just a two day class to become proficient. Any exclamation to students that they must continue their education has no credibility unless there is actually an accessible and affordable “next step” in rider training.
The MSF offers the BRC 2 (the old Experienced Ridercourse) and the Advanced RiderCourse, as well as the Street RiderCourse. Unfortunately, many training sites don’t offer or promote these programs, because they aren’t popular and are often cancelled from the schedule due to lack of interest. Some private options are available, including the Riding in the Zone Personal training program for more experienced riders.
Even if training is available, when already-licensed riders are approached with the idea of taking an advanced riding course, reading a skills book or article, or attending a track school, many scoff and turn away. Why? It seems that there is a belief that once a person learns the fundamental control skills, then they are all set; thank you very much.
There are emotional reasons as well. Many adults dislike being in the role of student, because they risk feeling incompetent, which is a real possibility when learning new and potentially difficult skills.

Evaluation Standards

Emphasizing that the BRC is a baby step toward proficiency and providing enticing opportunities for continuing education is important, but there are other problems, especially the fact that the evaluation standards are too easy and not realistic. An easy evaluation is popular with students who want to pass the course, as well as dealerships and manufacturers who want new customers, and even instructors who dislike having to fail students. But, a too-easy evaluation does a serious disservice to all involved.

The fact is that many, if not most graduates of the Basic course are not yet ready to ride on the road. Sure, they have learned basic operations, but not to any level of proficiency that can be considered sufficient for managing a “real life-sized” motorcycle among distracted drivers.
In many other professional training environments, the trainer has the final word on whether a student meets standards for not, even if they “pass” a test. Many motorcycle safety courses are also used for meeting the state licensing requirements, so standardized testing is the most practical way to go. It would be risky to allow instructors with below average judgment to have the power to fail one person and not another based on subjective criteria.
Unfortunately, without this ability to overrule the evaluation score sheet, weak riders who manage to somehow meet standard will continue to receive completion cards. Because of this, most coaches I know routinely have a heart to heart talk with riders who fall under this category after the evaluation is complete.
I’ve done it many times before. In extreme cases, I may say something like: “You met standard and passed the course, Chuck. BUT, if it were up to me you would not be receiving this completion card. In my professional opinion, you have a long way to go before you should consider riding on the street. If you decide to continue as a motorcycle rider, promise me you that you will buy a small used bike and practice, practice, practice in a parking lot and please consider coming back for private lessons and the BRC2 when you have a few miles under your belt.” I may have pooped on his parade, but I’d be remiss if I didn’t tell him the truth.

Is it time to regulate continuing education to help reduce fatalities?
Is it time to regulate continuing education to help reduce fatalities?

Force Change?

So, what’s the answer? In the UK and Europe mandatory rider training is a multi-level process that takes many months and a rather high price tag to receive a full license. But, it would be nearly impossible at this time to pass a regulation that would force new riders into a multistage training process before they can obtain their full “I’ll take that new ‘Busa” license.
So in the meantime I’ll continue to tell it like it is…because not everyone is cut out to ride a motorcycle.
How about this license test used in Japan? How do you think you’d do?

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Trianing-Tours_LandingBe a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget
